KG-002 Overlapped Wiper Assembly
Bus Wiper Assembly Series

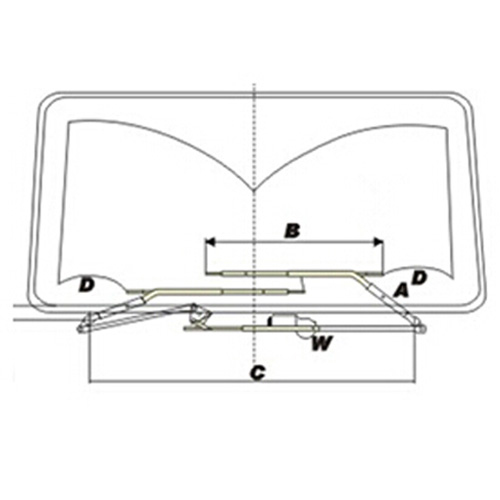

Overlapped Wiper Assembly Installing Drawing KG-002
|
Overlapped Wiper Assembly KG-002 |
||||
|
A |
Wiper Arm |
Model |
GB-04 |
|
|
Size |
780-700mm |
|||
|
B |
Wiper Blade |
Size |
1000-800mm |
|
|
C |
Centre Distance of Wiper Linkage |
Model |
LG-002 |
|
|
Size |
1980-1640mm |
|||
|
D |
Sweep angle |
∠ 80°/90°max |
||
|
W |
Motor |
Model |
ZD2733 |
|
|
Wheel Gear |
40\60\70 |
|||
|
Wetting Angle |
φ72\90mm |
|||
|
Power and volts |
150w 12v 150w 24v |
|||
|
Connector |
Customized |
|||
|
Washer |
3.5L |
|||
